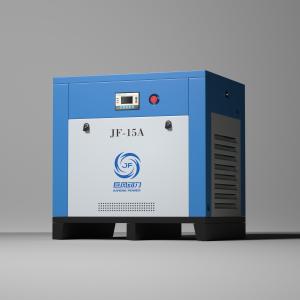

0.3 MPa Direct Drive Low Pressure Rotary Screw Compressor Fixed Speed Air Cooled
Description:
Jufeng low-pressure screw air compressor is designed to deliver exceptional performance, energy efficiency, and reliability for industries that require consistent and clean compressed air at lower pressures. Whether you're in manufacturing, food processing, or electronics, our compressor is the ideal solution for your low-pressure air needs.
Features:
1. Low working pressure:
Operating pressure of 3 bar (approximately 43.5 psi) is suitable for applications that do not require a high pressure air source.
2. Screw compression technology:
Screw compressor structure, with efficient and reliable gas compression capacity.
3. Continuous operation:
Designed for long-term continuous operation, it provides stable airflow and reduces downtime.
4. Energy saving design:
Many models are equipped with energy-saving technologies to reduce energy consumption and operating costs.
5. Low noise:
Low operating noise, suitable for use in noise sensitive environments.
Technical Parameter(0.3 Mpa):
| Model | JF-30AZ | JF-40AZ | JF-50AZ | JF-60AZ | JF-75AZ | JF-100AZ | JF-120AZ | JF-150AZ | Other |
| Power kw | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | Contact us! |
| Pressure Mpa | 0.3 |
| Exhaust volume m³/min | 6.4 | 7.6 | 10.3 | 13.2 | 16.4 | 21.0 | 25.2 | 33.4 |
| Noise dB(A) | 72±2 | 74±2 | 76±2 | 79±2 |
| Air outlet pipe diameter | G2'' | G2 ½'' | G3'' DN100 | DN125 |
| Lubricating oil volume | 56±1 | 74±196±1 | 128±1 | 200±1 |
| Dimension | 1900*1250*1600 | 2000*1250*1670 | 2500*1470*1840 | 3000*1700*1950 | 3200*1980*2150 |
| Weight kg | 1200 | 1320 | 2100 | 3000 | 3800 |
| Note: Because of the radiator mechanism, when the compressor pressure is too low, the compressed air passes through the heat radiator and the pressure loss is large. When the pressure is 0.3 Mpa, the compressor air won't pass through the radiator. |
Applications:
Food and Beverage Industry:
It is used for pneumatic packaging, filling and conveying to ensure the health and safety of the production process.
Pharmaceutical Industry:
Provides oil-free air suitable for the air source needs of the pharmaceutical process and meets strict hygiene standards.
Textile industry:
Used in pneumatic spinning and weaving machines to improve production efficiency and quality.
Automotive industry:
Support spraying, pneumatic tools and assembly to ensure efficient production processes.
Sewage treatment:
Used in gas aeration and water treatment processes to promote wastewater treatment efficiency.
Electronic Manufacturing:
Provide a clean air source to avoid contamination of sensitive electronic components.
Packing:
- The Low pressure screw air compressor will be securely packed in a wooden crate.
- The crate will be lined with foam padding to prevent any damage during transportation.
- The product will be sealed and labeled with the necessary shipping information.
Why Choose Jufeng Screw Air Compressor?
Cost Savings: Lower energy consumption and reduced maintenance costs.
Environmental Friendly: Energy-efficient design reduces carbon footprint.
Customizable Solutions: Tailored to meet specific pressure and flow requirements.
Expert Support: Comprehensive after-sales service and technical support.
